Anti-Hu CD172a PE

Regulatory status

RUO

Antigen

CD172a

Clone

15-414

Format

Reactivity

Human

Application

FC (QC tested)

Excitation laser

blue (488 nm)

Variant

100 tests

1P-798-T100

In stock

242.00 USD

Variant

100 tests

1P-798-T100

In stock

242.00 USD

Contact distributor

Product details

Description

Images

References

SDS download

Isotype

Mouse IgG2a

Specificity

The mouse monoclonal antibody 15-414 recognizes en extracellular epitope of CD172a (SIRP alpha), an approximately 90 kDa transmembrane glycoprotein expressed on cells of myeloid origin and neurons.

Application

FC (QC tested)

Application details

Flow cytometry: The reagent is designed for analysis of human blood cells using 10 μl reagent / 100 μl of whole blood or 10⁶ cells in a suspension. The content of a vial (1 ml) is sufficient for 100 tests.

Reactivity

Human

Immunogen

Kg-1a cell line

Preparation

Purified antibody is conjugated with R-phycoerythrin (PE) under optimum conditions. Unconjugated antibody and free fluorochrome are removed by size-exclusion chromatography.

Formulation

Stabilizing phosphate buffered saline (PBS), pH 7.4, 15 mM sodium azide

Storage and handling

Store at 2-8°C. Protect from prolonged exposure to light. Do not freeze.

The product is intended For Research Use Only. Diagnostic or therapeutic applications are strictly forbidden. Products shall not be used for resale or transfer to third parties either as a stand-alone product or as a manufacture component of another product without written consent of EXBIO Praha, a.s. EXBIO Praha, a.s. will not be held responsible for patent infringement or any other violations of intellectual property rights that may occur with the use of the products. Orders for all products are accepted subject to the Term and Conditions available at www.exbio.cz. EXBIO, EXBIO Logo, and all other trademarks are property of EXBIO Praha, a.s.

Other names

PTPNS1, BIT, MFR, SIRPA, SHPS1

Antigen description

CD172a, the signal-regulatory protein alpha (SIRP alpha), also known as SH2 domain-containing phosphatase substrate-1 (SHPS1), is a 75-110 kDa transmembrane glycoprotein expressed mainly on granulocytes, monocytes, macrophages, dendritic cells and neurons. Its extracellular ligand is CD47. CD172a serves as a substrate of activated receptor tyrosine kinases and upon phosphorylation it recruits SH2 domain-containing tyrosine phosphatases, thereby regulating signal transduction processes related to cell activation, transmigration and phagocytosis. CD172a is a specific marker of cardiomyocytes derived from human pluripotent stem cells and serves as a negative regulator of signaling and growth in myeloid progenitor cells.

Entrez Gene ID 140885

UniProt ID P78324

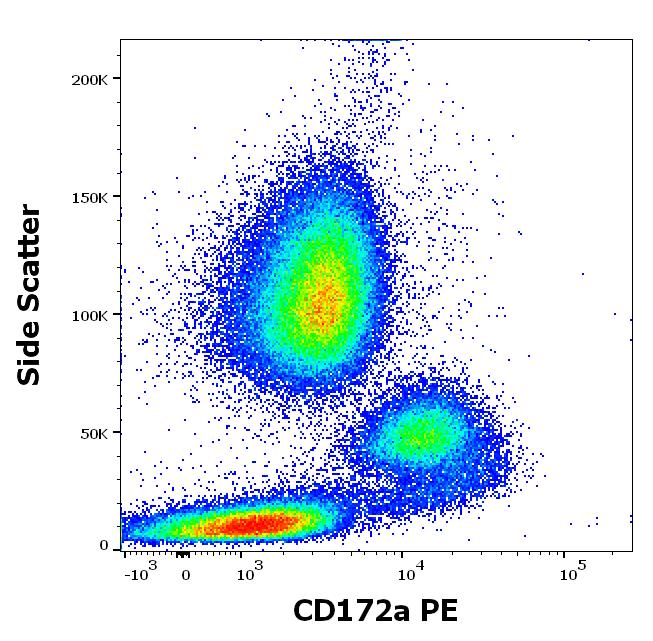

Anti-human CD172a PE antibody (clone 15-414) works in flow cytometry application.

Analysis of the antibody staining profile was performed on blood leukocytes isolated from buffy coats. HCDM CDMaps standardized procedures (Kuzilkova D et al. Front Immunol. 2022;13:827898) were used for cell isolation and surface staining of blood leukocytes, with the modification of staining protocol using cytometry test tubes.
Mouse monoclonal anti-human CD172a PE antibody (clone 15-414) was used in amount of 10 µl in 100 µl of blood sample (2 x 1⁶ cells).

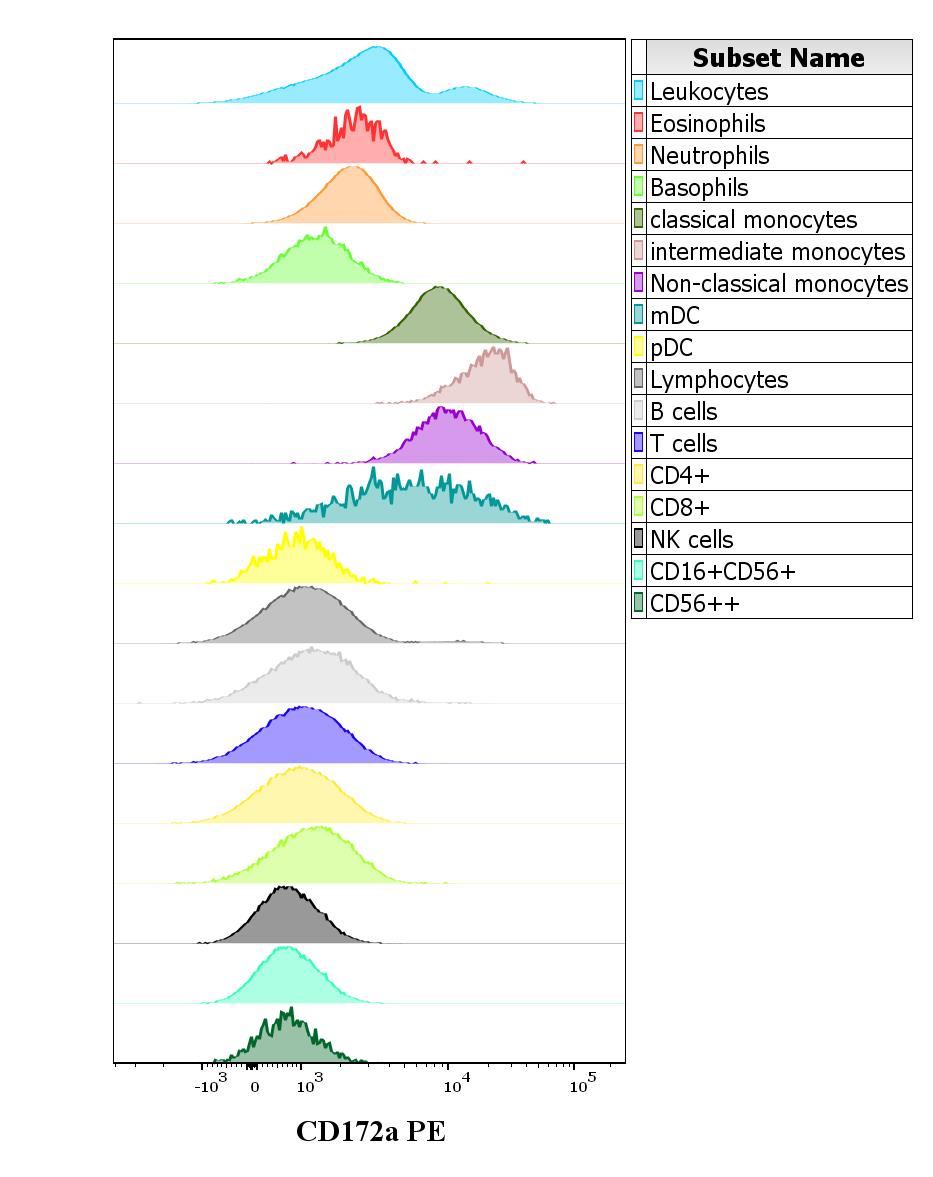

Expression profiling on peripheral blood subsets using Anti-human CD172a PE antibody (clone 15-414).

HCDM CDMaps standardized procedures (Kuzilkova D et al. Front Immunol. 2022;13:827898) were used for cell isolation and surface staining of blood leukocytes, with the modification of staining protocol using cytometry test tubes.
Suspension of blood leukocytes isolated from buffy coats (2 x 10⁶ cells) was added to the mixture of anti-human SIGLEC10 PE antibody (clone 15-414, 10 μl reagent / 100 μl of stained blood sample) and Monocyte Blocking Buffer (#ED7747), vortexed and incubated for 20 min. Next, optimized backbone antibody panels (HLDA Innate and HLDA Adaptive) were added to test tubes, vortexed and incubated for 20 min. The residual erythrocytes were lysed with 2 ml of 10× diluted EXCELLYSE Easy solution (#ED7066) and incubated for 10 min. Finally, samples were centrifuged (670 g, 5 min.), supernatant removed and the cell pellet was resuspended in 200 µl of PBS for acquisition.

General references:

Liu Y, Bühring HJ, Zen K, Burst SL, Schnell FJ, Williams IR, Parkos CA: Signal regulatory protein (SIRPalpha), a cellular ligand for CD47, regulates neutrophil transmigration. J Biol Chem. 2002 Mar 22;277(12):10028-36.
PubMed

Seiffert M, Brossart P, Cant C, Cella M, Colonna M, Brugger W, Kanz L, Ullrich A, Bühring HJ: Signal-regulatory protein alpha (SIRPalpha) but not SIRPbeta is involved in T-cell activation, binds to CD47 with high affinity, and is expressed on immature CD34(+)CD38(-) hematopoietic cells. Blood. 2001 May 1;97(9):2741-9.
PubMed

Product specific references:

Baba T, Badr Mel S, Tomaru U, Ishizu A, Mukaida N: Novel process of intrathymic tumor-immune tolerance through CCR2-mediated recruitment of Sirpα+ dendritic cells: a murine model. PLoS One. 2012;7(7):e41154. doi: 10.1371/journal.pone.0041154.
PubMed

Hansen IS, Krabbendam L, Bernink JH, Loayza-Puch F, Hoepel W, van Burgsteden JA, Kuijper EC, Buskens CJ, Bemelman WA, Zaat SAJ, Agami R, Vidarsson G, van den Brink GR, de Jong EC, Wildenberg ME, Baeten DLP, Everts B, den Dunnen J: FcαRI co-stimulation converts human intestinal CD103+ dendritic cells into pro-inflammatory cells through glycolytic reprogramming. Nat Commun. 2018 Feb 28;9(1):863.
PubMed
