Anti-Hu CD158f APC

Regulatory status

RUO

Antigen

CD158f

Clone

UP-R1

Format

APC

Reactivity

Human

Application

FC (QC tested)

Excitation laser

red (633 nm)

Variant

100 tests

1A-774-T100

In stock

242.00 USD

Variant

100 tests

1A-774-T100

In stock

242.00 USD

Contact distributor

Product details

Description

Images

References

SDS download

Isotype

Mouse IgG1 kappa

Specificity

The mouse monoclonal antibody UP-R1 recognizes an extracellular epitope on CD158f (KIR2DL5), a 60 kDa glycoprotein serving as a HLA class I ligand, and mainly expressed on a subset of NK cells and a small population of T cells. Its expression is highly polymorphic between individuals.

Application

FC (QC tested)

Application details

Flow cytometry: The reagent is designed for analysis of human blood cells using 10 μl reagent / 100 μl of whole blood or 10⁶ cells in a suspension. The content of a vial (1 ml) is sufficient for 100 tests.

Reactivity

Human

Immunogen

Human CD158f-Ig fusion protein

Preparation

Purified antibody is conjugated with activated allophycocyanin (APC) under optimum conditions and unconjugated antibody and free fluorochrome are removed by size-exclusion chromatography.

Formulation

Stabilizing phosphate buffered saline (PBS), pH 7.4, 15 mM sodium azide

Storage and handling

Store at 2-8°C. Protect from prolonged exposure to light. Do not freeze.

The product is intended For Research Use Only. Diagnostic or therapeutic applications are strictly forbidden. Products shall not be used for resale or transfer to third parties either as a stand-alone product or as a manufacture component of another product without written consent of EXBIO Praha, a.s. EXBIO Praha, a.s. will not be held responsible for patent infringement or any other violations of intellectual property rights that may occur with the use of the products. Orders for all products are accepted subject to the Term and Conditions available at www.exbio.cz. EXBIO, EXBIO Logo, and all other trademarks are property of EXBIO Praha, a.s.

Other names

KIR2DL5A

Antigen description

CD158f, also known as KIR2DL5, is a polymorphic 60 kDa transmembrane glycoprotein with two Ig-like extracellular domains by which it recognize HLA class I molecules. Its long intracellular domain contains immunoreceptor tyrosine-based inhibitory motifs (ITIMs) that upon extracellular ligand-mediated phosphorylation serve as docking sites for inhibitory phosphatases, which results in blocking natural cytotoxicity as well as antibody-dependent cytotoxicity of the particular NK cell, and its adhesion toward target cells. Together with other killer inhibitory receptors CD158f is important for immunological tolerance to discriminate between normal and abnormal cells. Besides NK cells it is expressed on a small population of cytotoxic T cells. Expression of CD158f alleles is highly variable in the population.

Entrez Gene ID 57292

UniProt ID Q8N109

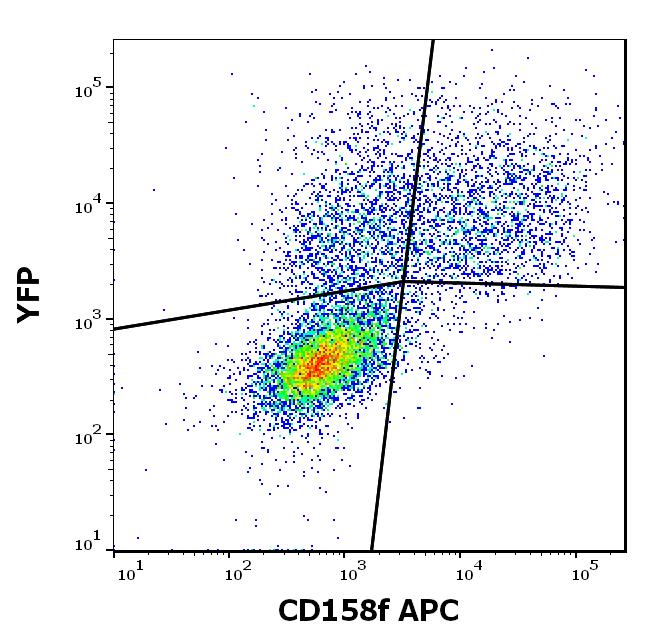

Flow cytometry surface staining pattern of KIR2DL5A (CD158f) transfected HEK-293 cells co-transfected with YFP coding plasmid using anti-human CD158f (UP-R1) APC antibody (10 μl reagent / 100 μl of peripheral whole blood).

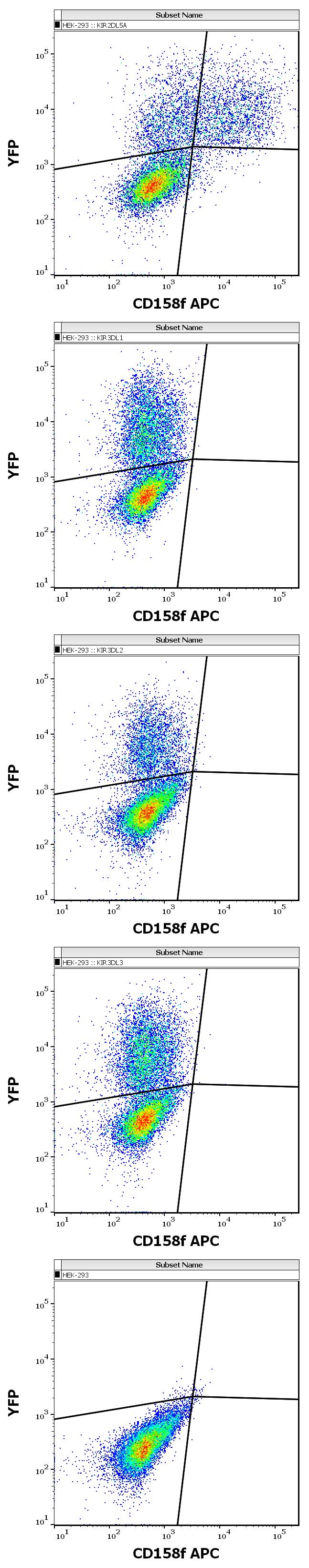

Flow cytometry surface staining patterns of non-transfected HEK-293 cells and HEK-293 cells transfected with KIR-family coding plasmids co-transfected with YFP coding plasmid using anti-human CD158f (UP-R1) APC antibody (10 μl reagent / 100 μl of peripheral whole blood).

General references:

Yusa S, Catina TL, Campbell KS: KIR2DL5 can inhibit human NK cell activation via recruitment of Src homology region 2-containing protein tyrosine phosphatase-2 (SHP-2). J Immunol. 2004 Jun 15;172(12):7385-92.
PubMed

Du Z, Sharma SK, Spellman S, Reed EF, Rajalingam R: KIR2DL5 alleles mark certain combination of activating KIR genes. Genes Immun. 2008 Jul;9(5):470-80.
PubMed

Product specific references:

Estefanía E, Flores R, Gómez-Lozano N, Aguilar H, López-Botet M, Vilches C: Human KIR2DL5 is an inhibitory receptor expressed on the surface of NK and T lymphocyte subsets. J Immunol. 2007 Apr 1;178(7):4402-10.
PubMed
