Anti-CD3 zeta Alexa Fluor^® 488

Regulatory status

RUO

Antigen

CD3 zeta

Clone

H146-968

Format

Alexa Fluor^® 488

Reactivity

Mouse, Human

Application

WB, FC (QC tested), ICC

Excitation laser

blue (488 nm)

Variant

0.1 mg

A4-568-C100

In stock

220.00 USD

Variant

0.1 mg

A4-568-C100

In stock

220.00 USD

Contact distributor

Product details

Description

Images

References

Isotype

Armenian Hamster IgG2 kappa

Specificity

The Armenian hamster antibody H146-968 reacts with an intracellular epitope (amino acids 151-164) of CD3 zeta chain (CD247), which is a component of TCR/CD3 complex expressed on T cells.

Application

WB, FC (QC tested), ICC

Application details

Flow cytometry: Recommended dilution: 1-3 μg/ml. Intracellular staining.

Reactivity

Mouse, Human

Immunogen

Synthetic peptide corresponding to amino acids 151-164 of mouse CD3 zeta.

Concentration

0.1 mg/ml

Preparation

Purified antibody is conjugated with Alexa Fluor^® 488 NHS ester under optimum conditions and unconjugated antibody and free fluorochrome are removed by size-exclusion chromatography.

Formulation

Stabilizing phosphate buffered saline (PBS), pH 7.4, 15 mM sodium azide

Storage and handling

Store at 2-8°C. Protect from prolonged exposure to light. Do not freeze.

The product is intended For Research Use Only. Diagnostic or therapeutic applications are strictly forbidden. Products shall not be used for resale or transfer to third parties either as a stand-alone product or as a manufacture component of another product without written consent of EXBIO Praha, a.s. EXBIO Praha, a.s. will not be held responsible for patent infringement or any other violations of intellectual property rights that may occur with the use of the products. Orders for all products are accepted subject to the Term and Conditions available at www.exbio.cz. EXBIO, EXBIO Logo, and all other trademarks are property of EXBIO Praha, a.s.

Alexa Fluor^®, Pacific Blue™ and Pacific Orange™ are registered trademarks of Life Technologies Corporation.

This product is provided under an intellectual property license from Life Technologies Corporation. The transfer of this product is conditioned on the buyer using the purchased product solely in research conducted by the buyer, excluding contract research or any fee for service research, and the buyer must not (1) use this product or its components for (a) diagnostic, therapeutic or prophylactic purposes; (b) testing, analysis or screening services, or information in return for compensation on a per-test basis; or (c) manufacturing or quality assurance or quality control, and/or (2) sell or transfer this product or its components for resale, whether or not resold for use in research. For information on purchasing a license to this product for purposes other than as described above, contact Life Technologies Corporation, 5781 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@lifetech.com.

Other names

CD3 zeta chain, CD247, T3Z, TCRz, IMD25

Antigen description

CD3 complex is crucial in transducing antigen-recognition signals into the cytoplasm of T cells and in regulating the cell surface expression of the TCR complex. T cell activation through the antigen receptor (TCR) involves the cytoplasmic tails of the CD3 subunits CD3 gamma, CD3 delta, CD3 epsilon and CD3 zeta (CD247). These CD3 subunits are structurally related members of the immunoglobulins super family encoded by closely linked genes on human chromosome 11. The CD3 components have long cytoplasmic tails that associate with cytoplasmic signal transduction molecules. This association is mediated at least in part by a double tyrosine-based motif present in a single copy in the CD3 subunits. CD3 may play a role in TCR-induced growth arrest, cell survival and proliferation.

Entrez Gene ID 919

UniProt ID P20963

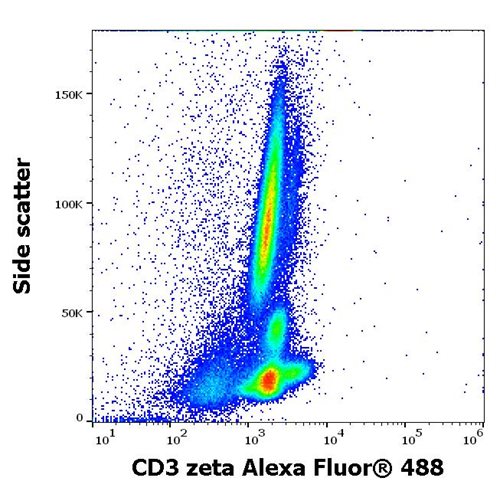

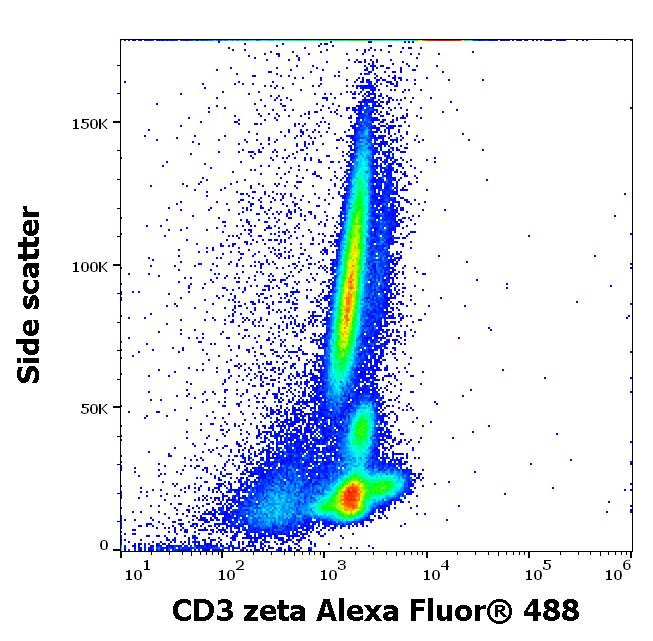

Flow cytometry intracellular staining pattern of human peripheral whole blood stained using anti-human CD3 zeta (H146-968) Alexa Fluor® 488 antibody (concentration in sample 9 μg/ml).

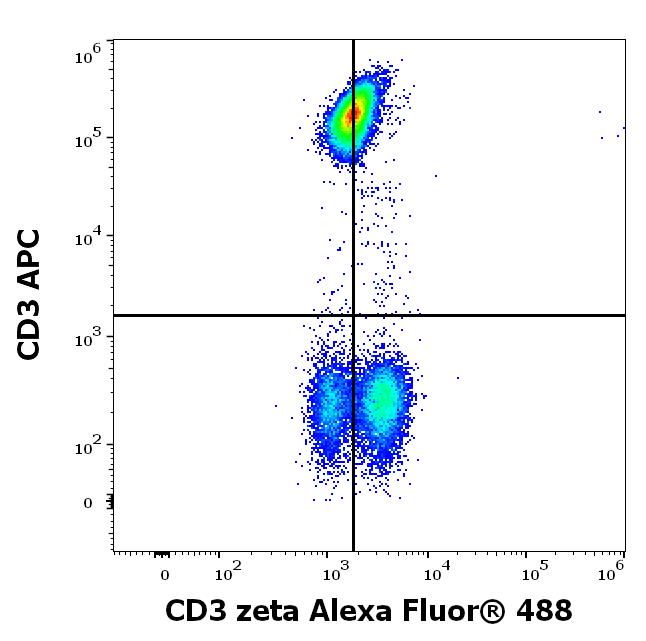

Flow cytometry multicolor surface staining pattern of human lymphocytes using anti-human CD3 (UCHT1) APC antibody (10 μl reagent / 100 μl of peripheral whole blood) and intracellular staining of human lymphocytes using anti-human CD3 zeta (H146-968) Alexa Fluor® 488 antibody (concentration in sample 9 μg/ml).

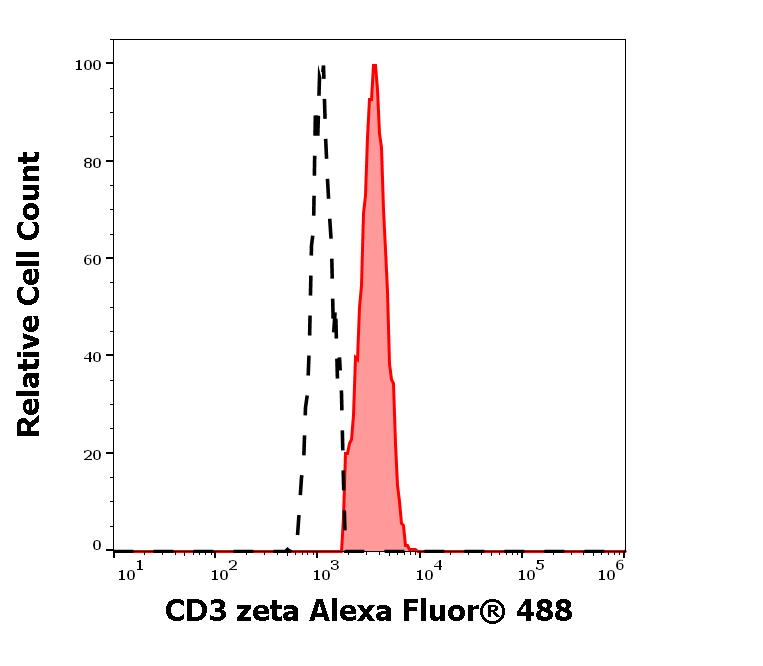

Separation of human CD3 zeta positive CD3 positive T cells (red-filled) from CD3 zeta negative CD3 negative lymphocytes (black-dashed) in flow cytometry analysis (intracellular staining) of human peripheral whole blood stained using anti-human CD3 zeta (H146-968) Alexa Fluor® 488 antibody (concentration in sample 9 μg/ml).

General references:

Alarcón B, Swamy M, van Santen HM, Schamel WW: T-cell antigen-receptor stoichiometry: pre-clustering for sensitivity. EMBO Rep. 2006 May;7(5):490-5.
PubMed

Kuhns MS, Davis MM, Garcia KC: Deconstructing the form and function of the TCR/CD3 complex. Immunity. 2006 Feb;24(2):133-9.
PubMed

Huang Y, Wange RL: T cell receptor signaling: beyond complex complexes. J Biol Chem. 2004 Jul 9;279(28):28827-30.
PubMed

Product specific references:

Scumpia PO, Delano MJ, Kelly-Scumpia KM, Weinstein JS, Wynn JL, Winfield RD, Xia C, Chung CS, Ayala A, Atkinson MA, Reeves WH, Clare-Salzler MJ, Moldawer LL: Treatment with GITR agonistic antibody corrects adaptive immune dysfunction in sepsis. Blood. 2007 Nov 15;110(10):3673-81.
PubMed

Doyon L, Hanna Z, Jolicoeur P, Sékaly RP: Early expression of human CD4 delays thymic differentiation in transgenic mice. Res Immunol. 1994 Jan;145(1):5-16.
PubMed

Kikuchi-Maki A, Catina TL, Campbell KS: Cutting edge: KIR2DL4 transduces signals into human NK cells through association with the Fc receptor gamma protein. J Immunol. 2005 Apr 1;174(7):3859-63.
PubMed

Iida T, Ohno H, Nakaseko C, Sakuma M, Takeda-Ezaki M, Arase H, Kominami E, Fujisawa T, Saito T: Regulation of cell surface expression of CTLA-4 by secretion of CTLA-4-containing lysosomes upon activation of CD4+ T cells. J Immunol. 2000 Nov 1;165(9):5062-8.
PubMed

Kosugi A, Saitoh S, Noda S, Yasuda K, Hayashi F, Ogata M, Hamaoka T: Translocation of tyrosine-phosphorylated TCRzeta chain to glycolipid-enriched membrane domains upon T cell activation. Int Immunol. 1999 Sep;11(9):1395-401.
PubMed

Bäckström BT, Hausmann BT, Palmer E: Signaling efficiency of the T cell receptor controlled by a single amino acid in the beta chain constant region. J Exp Med. 1997 Dec 1;186(11):1933-8.
PubMed

Kishimoto H, Kubo RT, Yorifuji H, Nakayama T, Asano Y, Tada T: Physical dissociation of the TCR-CD3 complex accompanies receptor ligation. J Exp Med. 1995 Dec 1;182(6):1997-2006.
PubMed

Rozdzial MM, Kubo RT, Turner SL, Finkel TH: Developmental regulation of the TCR zeta-chain. Differential expression and tyrosine phosphorylation of the TCR zeta-chain in resting immature and mature T lymphocytes. J Immunol. 1994 Aug 15;153(4):1563-80.
PubMed
